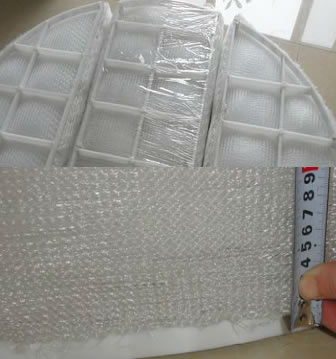

This type of Non-Metal Demister Pad / Mist Eliminator is constructed from multi-layer PTFE knitted mesh media. For a wide range of water treatment uses. |
| |
|
 |
Specification of PTFE pad for energy storage system:
Materials: PTFE/PVDF. No metal is used.
Size: OD 68 mm
Thick: 50 mm
.
The mesh pad provides a dense 'mat' through which process gas flows and liquid entrainment is trapped through impingement/coalescence and prevented from passing downstream, achieving liquid/gas separation. The pads are woven in different densities and with different wire specifications.
Demister Material: PP,F4(PTFE),PE,F46,PVC,PVDF
SPECIFICATION CHART |
Style |
Materials |
Application |
Wire
Diameter
mm |
Mesh
Density
kg/m3 |
Surface
Area
m2/m3 |
Voidage
% |
Nominal
Micron
Rating* |
HE-1P |
Polypropylene |
Acid mists |
0.25 |
75 |
1120 |
93.0 |
3 μ |
GP-1P |
Polypropylene |
Chemical scrubber towers |
0.25 |
50 |
750 |
95.3 |
6 μ |
GP-1T |
Teflon |
Very corrosive services |
0.25 |
64 |
480 |
97.0 |
8 μ |
DS-1P |
Polypropylene |
Low pressure drop e.g. air scrubbers |
0.25 |
33 |
490 |
96.9 |
10 μ |
|
|
PTFE Mesh Demister Pad
